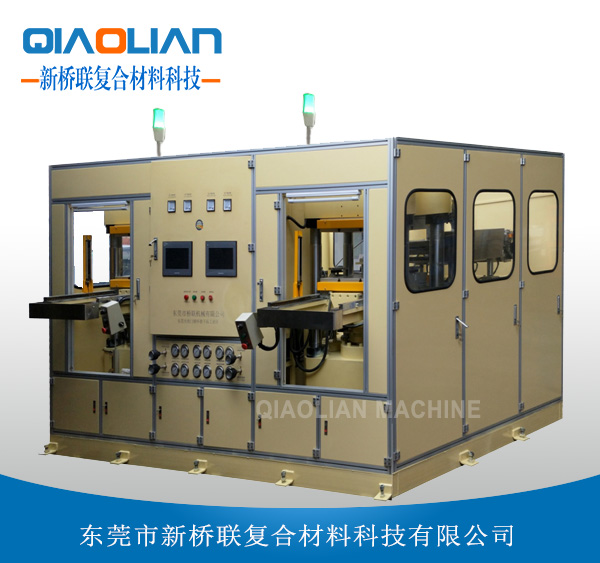

    精密IMD香蕉视频APP网站入口

    精密IMD香蕉视频APP网站入口

    • 所屬分類:PC/PMMA香蕉视频APP网站入口

    • 品牌:香蕉视频色版
    • 點擊次數:
    • 發布日期:2019/12/24
    • 規格:
    • 類型:
    • 在線詢價
    • 詳細介紹

    適用材料及範圍/Application:

    1、適用材料:複合片材(薄膜)3D成型領域,比如PC片材、PC+PMMA片材、PMMA片材等;

    2、適用範圍:超薄電子配件(3D手機背蓋板/麵板)、電子產品觸摸屏、工業銘牌/麵板、3D鏤空儀表盤、電子產品視窗、電子外殼、汽車觸摸屏等領域。

    1. Applicable materials: Composite sheet (thin film) 3D forming field, such as PC sheet, PC+PMMA sheet, PMMA sheet, etc.
    2. Scope of application: Ultra-thin electronic accessories (3D mobiles phones back cover panel/panel), touch screen of electronic products, industrial nameplate/panel, 3D hollow

    dashboard, electronic products windows, electronic shell, automobiles touch screen and other fields.


    設備優點/Advantages of equipment:

    1、控製係統:采用PLC+雙觸摸控製係統;

    2、主體結構:主體受力結構件采用球墨鑄鐵澆鑄而成剛性好;

    3、平麵度:上下熱板經氮化加硬處理,表麵硬度高耐磨;

    4、烘烤係統:片材加熱係統采用進口IR紅外加熱模塊,配合溫度模塊溫度自動補償控製精準, 移進/移出采用伺服控製動作快速穩定;

    5、空氣壓力:壓力範圍60-150Kg/cm²,滿足各種複雜3D拉伸要求。

    1. Control system: PLC + double touch control system;
    2. Main structure: The main force-bearing structural parts are cast with ductile iron and have good rigidity.
    3. Flatness: The upper and lower hot plates are hardened by nitriding, and the surface is high wear-resistant in India.
    4. Baking system: The sheet heating system adopts imported IR infrared heating module, with precise automatic temperature compensation control of temperature module, and

    adopts servo control to move in and out quickly and stably.
    5. Air pressure: The range of pressure is 60-150 Kg/cm, which meets all kinds of complex 3D stretching


    技術參數/Technical parameters:

    設備型號/Type

    HMD-5656HNS-6060HNS-6565
    空氣壓力/Air pressure60-150 Kg60-150 Kg80-300 Kg
    合模力/Mold clamping force2000 KN2500 KN3000 KN
    工作台尺寸/Table size560*560 MM600*600 MM650*650 MM
    熱板加熱功率/Hot plate heating power15 KW * 2 Set16 KW * 2 Set20 KW * 2 Set
    IR紅外加熱功率/IR heating power12.8 KW *2 Set12.8 KW *2 Set15 KW *2 Set
    開模方式/Open mold上升-下降-出入模/機械自動開模
    主馬達功率/Main motor power7.5 KW *2 Set7.5 KW *2 Set7.5 KW *2 Set
    總量功率/Total power45KW56KW60KW
    設備重量/Total weightabout 9500 Kgabout 11000 Kgabout 13000 Kg
    設備尺寸/Equipment sizeW3600*L2600*H2600MMW3800*L2800*H2600MMW36800*L3000*H2600MM

    *如有參數變更,恕不另行通知。We reserve the right to change any design and specification without ontice.
