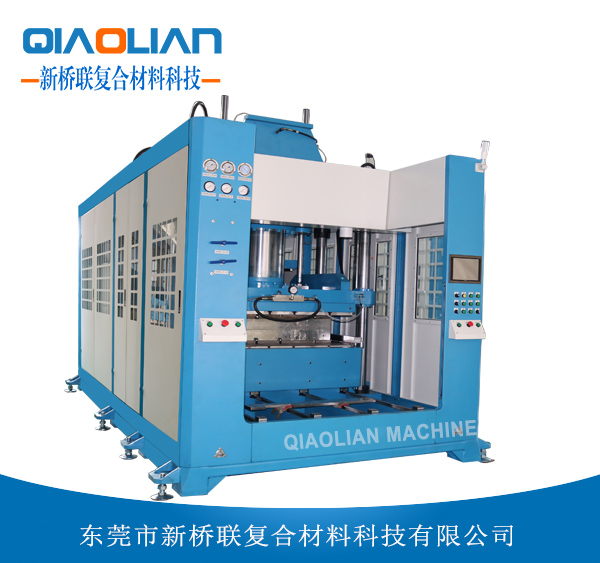

中壓成型機應汽車內飾件產業（IMD）製程要求，特別針對PC薄膜快速成型設計，采用遠紅外線陶瓷加熱器上下加熱模式，快速均勻加熱薄膜片材，搭配真空係統及高壓吹氣係統快速成型，以達到工作麵積大，穩定，快速大量生產。
Because of the requirement of automotive interior parts industry (IMD), especially for PC film rapid prototyping design,the medium pressure moulding machine uses far infrared ceramic heater up and down heating mode to rapidly and evenly heat the film sheet, and quickly enters and Rapid prototyping with vacuum system and high pressure scavenger system, so as to achieve large working area, stability and rapid mass production.
應用範圍/Applications：
主要生產PC視窗汽車內飾件、帶氛圍燈汽車內飾件、汽車中控麵板燈汽車內飾件成型。
Mainly produces various automotive interior parts, household appliances shell, laptop shell film and other related products shell forming.
特點/Advantages：
一、整機鎖模係統采用下直壓式油壓缸結構，鎖模快速平衡，低能耗。操作台麵低，符合人體工學設計。
二、雙開式壓板掀模機構，出模自動掀模，安全，穩定。
三、采用遠紅外線陶瓷加熱器上下加熱模式，快速均勻加熱薄膜片材。
四、 三層模板式設計，成品自動脫模，品質穩定，操作簡易。
五、低模溫設計，成品自動脫模，品質穩定，操作簡易。
六、搭配真空係統及高壓吹氣係統，快速成型，符合大麵積量產需求。
七、采用共用模塊及型腔，模具製作簡易、快速、可大幅度降低模具費用。
1、The clamping system of the whole machine adopts the structure of downward direct-pressure hydraulic cylinder, which makes the clamping mode balanced quickly and has low energy consumption. Operating table is low, which conforms to ergonomic design.
2、Double-open die lifting mechanism for pressing plate, automatic die lifting, safe and stable.
3、 Using far infrared ceramic heater up and down heating mode, the film sheet can be heated rapidly and uniformly.
4、 three-layer template design, automatic demoulding of finished products, stable quality, easy operation.
5、 Low die temperature design, automatic demoulding of finished products, stable quality and easy operation.
6、 Rapid prototyping with vacuum system and high pressure scavenger system, rapid prototyping, meets the needs of large-scale production.
7、 By using common modules and cavity, the die making is simple, fast and can greatly reduce the cost of the die.
技術參數：/Technical parameters:
| 機型Type | FMS-0710 | FMS-1210 |
| 空氣壓力Are pressure(kg/cm2) | 80 | 80 |
| 熱板尺寸Hot plate size(mm) | 1000*750 | 1200*1000 |
| 工作台麵Worktable size(mm) | 950*700 | 1200*1000 |
| IR加熱麵積IR heating size(mm) | 1000*800 | 1200*1000 |
IR加熱功率IR heating power(kw) | 40 | 70 |
| IR加熱溫度範圍 IR heating temperature range | 0-350℃ | 0-350℃ |
真空係統Vacuum pressure(mmHg) | -70 | -70 |
| 電源規格Power specification | 380V | 380V |
| 整機功率 Overall power(kw) | 55 | 90 |
| 設備重量Gross weight(kg) | 8500 | 11500 |
| 設備尺寸Dimension(mm) | 4500*2300*2850 | 5100*2400*3050 |
*如有參數變更，恕不另行通知。We reserve the right to change any design and specification without ontice.
