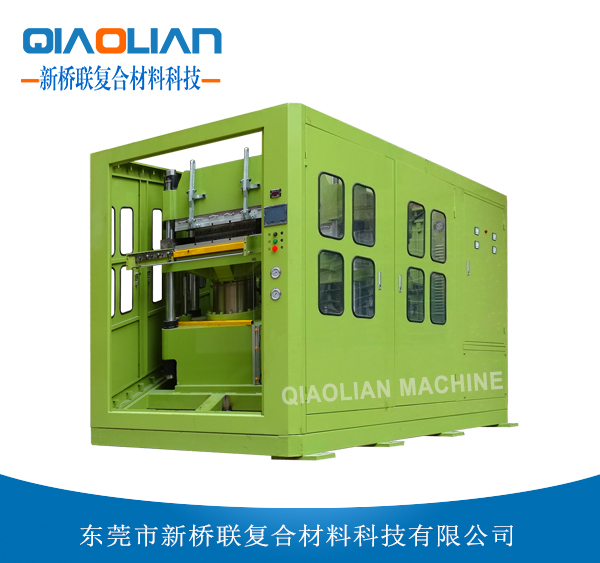

熱塑性纖維成型機簡稱熱塑成型機
主要針對熱塑性ABS/PP/PA纖維片材二次成型，根據熱塑性成型工藝要求設備提供片材快速均勻升溫、低溫定型原理實現節能、高效大批量生產。
Thermoplastic Fiber Molding Machine Abbreviated as Thermoplastic Molding Machine
Aiming at the secondary forming of thermoplastic ABS/PP/PA fiber sheet.According to the requirement of thermoplastic forming process, the equipment provides the principle of rapid uniform heating and low temperature setting to realize energy saving and high efficiency mass production.
應用範圍：
輕量化汽車配件、航空座椅、新能源電池保護蓋及殼體、汽車裝飾件、3C電器產品殼體等。
Application:
Lightweight automotive accessories, aviation seats, new energy battery cover and shell, automotive decorative parts, 3C electrical products shell, etc.
技術參數/Technical parameters：
| 型號Type | SHM-560 | SHM-600 | SHM-750 | SHM-1000 | SHM-1500 |
| 麵板尺寸Heating plate size (mm) | 560*560 | 600*600 | 750*1000 | 1000*1250 | 1000*1500 |
| 合模力Clamping Force (T) | 100T-500T | ||||
| 行程Stroke (mm) | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 |
| 功率Power (KW) | 5.5/7.5 | 5.5/7.5 | 7.5/11 | 7.5/11 | 7.5/11 |
| 控製係統Control System | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
| 備注Remarks | 麵板尺寸可定做 | ||||
*如有參數變更，恕不另行通知。We reserve the right to change any design and specification without ontice.
