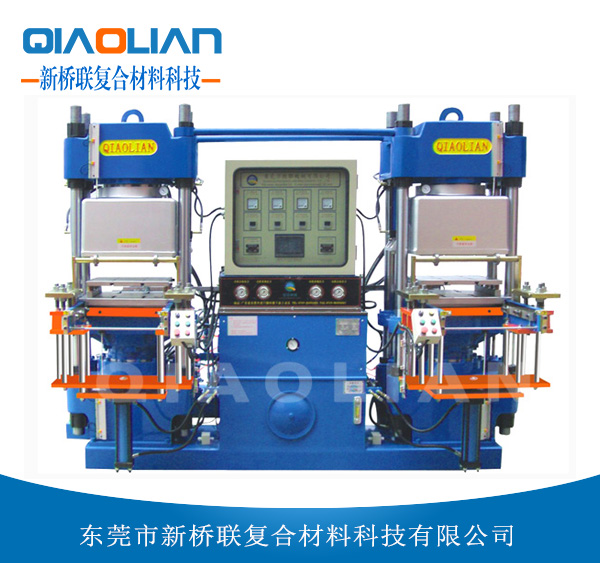

矽橡膠抽香蕉视频网站免费Silicone rubber vacuumizing and hot pressing forming machine：
適合範圍/Machine application：
矽膠和橡膠複雜多變多角的運動用品、精密電子配件、O型圈、按鍵、膠輥、醫療瓶塞、汽車零件、電力行業小配件、減震用品、異形墊片、導電用品等。
The machine can produce silicone and rubber complex polygonal sporting goods, precision electronic parts, o-rings, key pads, rubber roller, medical bottle stopper, auto parts, small parts, shock absorption of the electric power industry supplies, special-shaped gaskets gaskets , conductive products , etc.
設備特點/Equipment features：
一、操作簡單、換模具時，不需將軌道模座卸下，即可輕鬆完成；
二、采用雙動力、雙油泵、雙馬達、雙冷卻器，兩軸完全獨立工作；
三、油路係統特殊設計，無振動，穩定性好，出入模、上升下降比同行機器要快；
四、真空度高，采用平均抽法，可使產品穩定，提高品質及產能；
五、特殊掀模機構設計，耐用，壽命長，出入模靜音、快速、平穩。
1、Convenient for workers to operate, The change of the molds can be realized easily, no need to remove the mold opening pedestal from the rail.
2、Double power systems, double oil pumps, double motors and double oil coolers are applied for the two axles to work independently.
3、The oil system is unique in design ,with good stability, faster lift-up and lift-down speed compared with other brands during unloading/loading molds.
4、With high vacuum and average pumping method, which is ensure the product stabilized and improved the quality and capacity.
5、Special mold open mechanism design, durable, long life, quiet mold in and out, fast, smooth.
設備參數/Equipment parameters：
| 機型/TYPE | 100Ton | 150Ton | 200Ton | 250 Ton | 300 Ton | 300B Ton | 400 Ton | 500 Ton |
| 出力Clamping force(Ton) | 100 | 150 | 200 | 250 | 300 | 300 | 400 | 500 |
行程Stroke(mm) | 250 | 250 | 280 | 300 | 300 | 300 | 300 | 300 |
台麵Heating plate size(mm) 上熱板/下熱板 | 400*400 448*460 | 420*420 460*460 | 503*508 545*560 | 600*600 650*650 | 600*600 650*650 | 700*700 700*700 | 700*700 800*800 | 800*800 850*850 |
缸徑Diameter or cylinde(mm) | Φ250 | Φ310 | Φ355 | Φ400 | Φ450 | Φ450 | Φ500 | Φ560 |
馬力Horse power(HP) | 7.5*2 | 7.5*2 | 10*2 | 10*2 | 10*2 | 10*2 | 15*2 | 15*2 |
開模形式Type of mold opening | 上升下降-出入模-2RT/3RT/4RT/ UP Down in-Out-2RT/3RT/4RT | |||||||
雙軸電熱Double shaft thermal electricity(KW) | 14 | 22.5 | 27 | 34.5 | 36 | 45.5 | 46.5 | 48 |
總電力Total power(KW) | 19.5 | 33.5 | 42 | 49.5 | 51 | 60.5 | 68.5 | 70 |
重量Gross weight(KG) | 6000 | 7500 | 8500 | 11000 | 13000 | 15000 | 19500 | 24000 |
機台尺寸Machine Size(m) | 2.7*2.3*2.27 | 3.0*2.3*2.35 | 3.2*2.6*2.5 | 3.6*2.95*2.65 | 3.65*2.95*2.7 | 3.8*3.0*2.9 | 3.85*3.15*3.0 | 4.1*3.2*3.1 |
*如有參數變更，恕不另行通知。We reserve the right to change any design and specification without ontice.
