應用範圍/Applications：

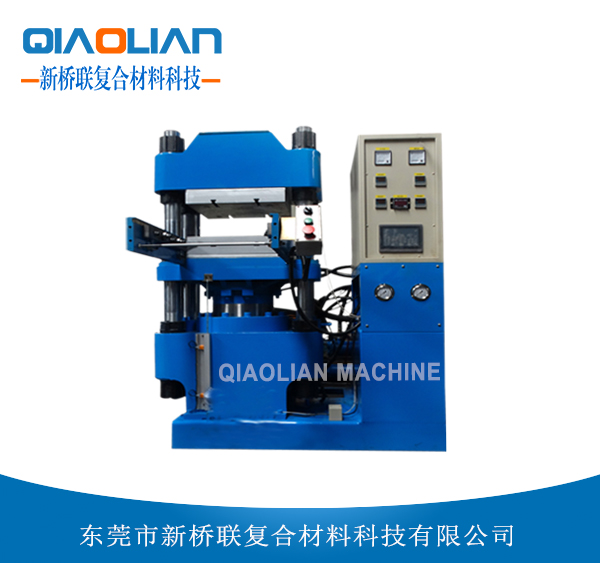

本實驗機針對SMC/GMT/熱固環氧樹脂基纖維材料（碳纖/玻纖）等熱壓成型，供實驗測抓取工藝數據和驗證工藝使用。
This machine is designed for hot pressing of SMC/GMT/thermosetting epoxy resin and fibre material (carbon fiber/glass fiber), which can be used for testing and grasping process data and verifying process.
特點/Characteristics：
一、可配機械自動開模，方便人員操作；
二、采用比壓比流或伺服油路設計，穩定、節能，上升下降速度可因使用需求調整；
三、具有慢速校模功能，校模更精確、更安全。
1、It can be equipped with mechanical automatic mould opening, which is convenient for workers to operate.
2、Adopting specific pressure specific flow or servo oil circuit design, which is stable and energy-saving;increase
in the rate of decline may be due to the use of demand adjustment;
3、Slow moving speed is available for alignment safer and more accurate.
技術參數/Technical parameters：
| 型號Type | HM-400 | HM-500 | HM-600 | HM-800 |
| 麵板尺寸Heating plate size (mm) | 400*400 | 500*500 | 600*600 | 800*800 |
| 合模力Clamping Force (T) | 100T-500T | |||
| 行程Stroke (mm) | 250-300 | 250-300 | 250-300 | 250-300 |
| 功率Power (KW) | 5.5 | 7.5 | 7.5 | 11 |
| 控製係統Control System | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
| 工位Workstation (QTY) | 1-3站可定製 | |||
| 備注Remarks | 麵板尺寸可定做 | |||
*如有參數變更，恕不另行通知。We reserve the right to change any design and specification without ontice.
